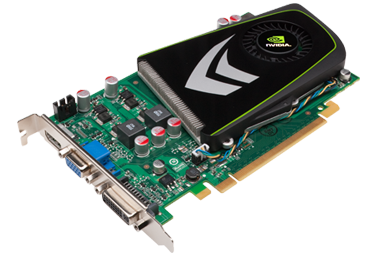

GeForce GT 340

GPU Engine Specs:

CUDA Cores	96
Graphics Clock (MHz)	550 MHz
Processor Clock (MHz)	1340 MHz

Memory Specs:

Memory Clock (MHz)	1700 MHz
Standard Memory Config	512 MB or 1 GB
Memory Interface Width	128-bit
Memory Bandwidth (GB/sec)	54.4 GB/sec

Feature Support:

GeForce 3D Vision Ready	yes
NVIDIA PureVideo® Technology^*	HD
NVIDIA PhysX™-ready	yes
NVIDIA CUDA™ Technology	yes
Microsoft DirectX	10.1
OpenGL	3.2
Bus Support	PCI-E 2.0
Certified for Windows Vista	yes

Display Support:

Maximum Digital Resolution	2560x1600
Maximum VGA Resolution	2048x1536
Standard Display Connectors	HDMI DVI VGA
Multi Monitor	yes
HDCP^*	yes
HDMI^*	yes
Audio Input for HDMI	Internal

Standard Graphics Card Dimensions:

Height	4.376 inches (111 mm)
Length	6.6 inches (168mm)
Width	Single-slot

Thermal and Power Specs:

Maximum GPU Temperature (in C)	105C C
Maximum Graphics Card Power (W)	69 W
Minimum System Power Requirement (W)	300 W

ATI RADEON HD 5970

Dual GPUs with a total of 4.3 billion 40nm transistors

DirectX 11 support

Shader Model 5.0

DirectCompute 11

Dual-stream 1080p playback support^9,10

DXVA 1.0 & 2.0 support

Max resolution: 2560x1600¹²

Max resolution: 1920x1200¹²

Max resolution: 2048x1536¹²

3D stereoscopic display/glasses support¹³

Integrated HD audio controller

Speeds & Feeds

Engine clock speed: 725 MHz

Processing power (single precision): 4.64 TeraFLOPS

Processing power (double precision): 928 GigaFLOPS

Polygon throughput: 1.45 billion polygons/sec

Data fetch rate (32-bit): 464 billion fetches/sec

Texel fill rate (bilinear filtered): 116 Gigatexels/sec

Pixel fill rate: 46.4 Gigapixels/sec

Anti-aliased pixel fill rate: 185.6 Gigasamples/sec

Memory clock speed: 1.0 GHz

Memory data rate: 4.0 Gbps

Memory bandwidth: 256.0 GB/sec

Maximum board power: 294 Watts

Idle board power: 51 Watts

Samsung Ecogreen f2 1.0TB General
Product Line	EcoGreen F2
Drive Type	Desktop
Capacity	1.0 TB
Interface	Serial Advanced Technology Attachment (SATA)

Performance
Rotational Speed	Variable
Cache Size	32 MB

MB899 & MB899X
Socket 478 Intel Core 2 Duo Mini-ITX Motherboard - 170x170mm

Socket 478 for Intel® Core 2 Duo processors
Mobile Intel® 945GM Chipset, Two DDR2 DIMM sockets
Supports CRT, LVDS, optional TV out
10/100 BaseT LAN, PCI Express Gigabit LAN
SATA x2, USB x6, Digital I/O, Watchdog timer
PCI-E (x16) x1, Mini PCI x1, Mini PCIe x1
